Technical requirements for tank net (guardrail net): Each net weighs 29-30KG

Size: 100 square meters (length * width 10 * 10M, height 1.1-1.4M)

Wire diameter 0.5-0.9mm (+0.02)

(Third column/First and second columns/Below: 0.8-0.9mm) Fourth column: 0.5-0.6mm

Material requirements: Carbon steel

0.5-0.6mm wire, carbon content not less than 0.42% 0.8-0.9mm wire, carbon content not less than 0.42% Tensile strength: not less than 1700N/mm2 Bending times: not less than 9 Twisting times: not less than 20

Quantity of plastic zip ties: 170-190 per product Shelf life: 5 years, uninterrupted use for 1 year. Each batch of products: The manufacturer needs to provide a product quality inspection report. Product manual: For each batch of products, the manufacturer needs to provide an installation manual. Marking: Each product needs to be labeled

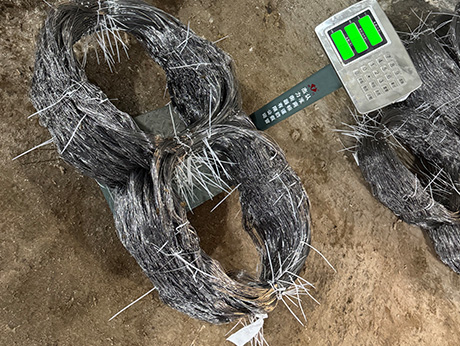

Weight of each net: 29-30KG

Size: 100 square meters (length * width 10 * 10M, height 1.1-1.4M) Wire diameter 0.5-0.9mm (± 0.02) (third column/first and second columns/bottom: 0.8-0.9mm) Four columns: 0.5-0.6mm

Material requirements: Carbon steel

0.5-0.6mm wire, carbon content not less than 0.42% 0.8-0.9mm wire, carbon content not less than 0.42% Tensile strength: not less than 1700N/mm2 Bending times: not less than 9

Twisting times: not less than 20
